60191651 Slewing Reducer Assembly RG27D25E for SY485 SY500 SY550
| 起源の場所 | 中国製 |
|---|---|
| ブランド名 | TCY |
| モデル番号 | SY485 SY500 SY550 |
| 最小注文数量 | 1 |
| パッケージの詳細 | 木製ケース |
| 受渡し時間 | 2-3/交渉する |
| 支払条件 | T/T,Alipay,WeChat...など,ウェスタンユニオン,マネーグラム,D/P |
商品の詳細

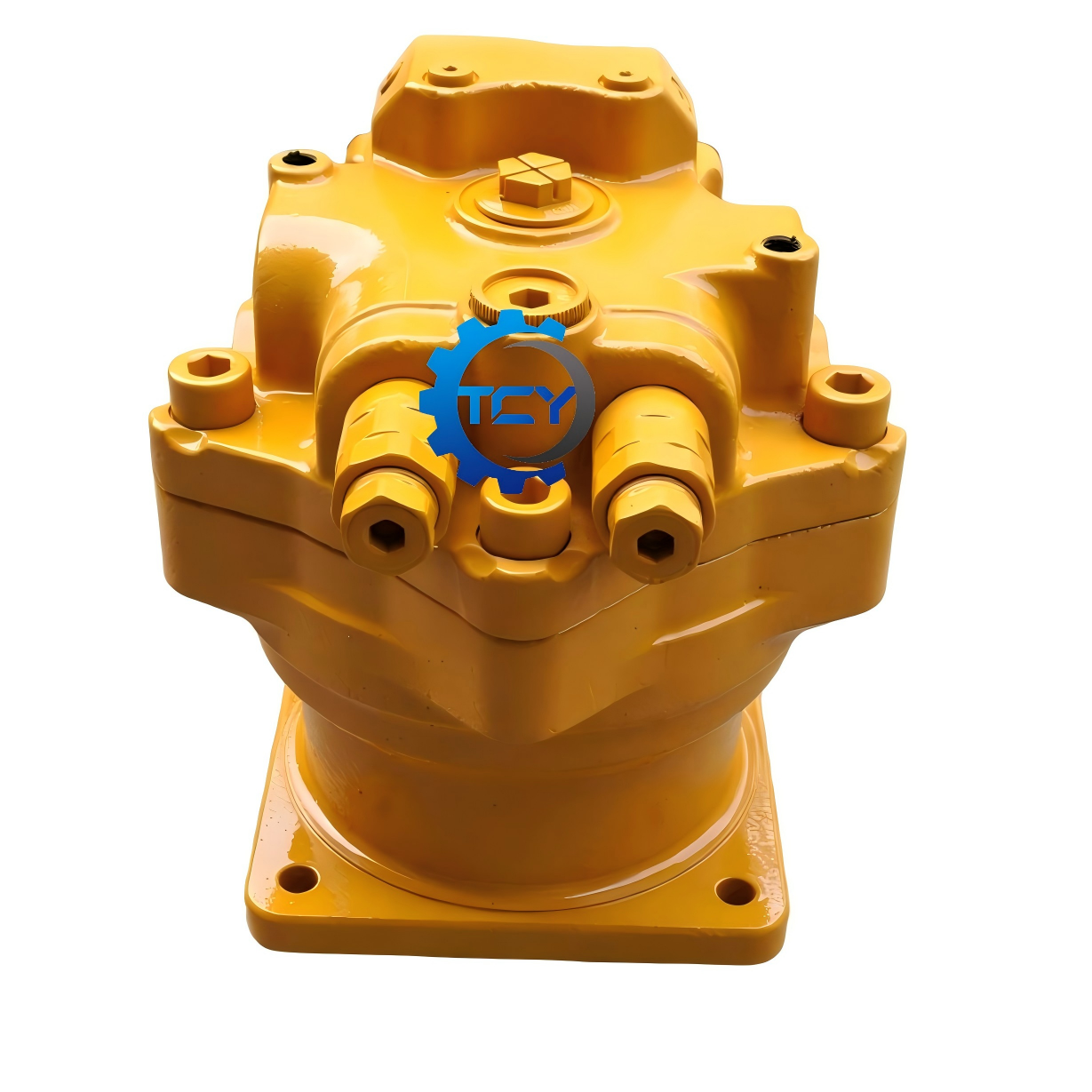

| モデル | SY485 SY500 SY550 | モーターモデル | M5X250CHB |
|---|---|---|---|
| 減速機型式 | RG27D25E | 製品名 | 振れ止め装置 |
| 部品番号 | 60191651 60201948 60201949 | MOQ | 1個 |
| 状態 | 新しい | ブランド名 | TCY |
| に適合 | SANY XCMG LIUGONG ECT 掘削機 |
製品の説明

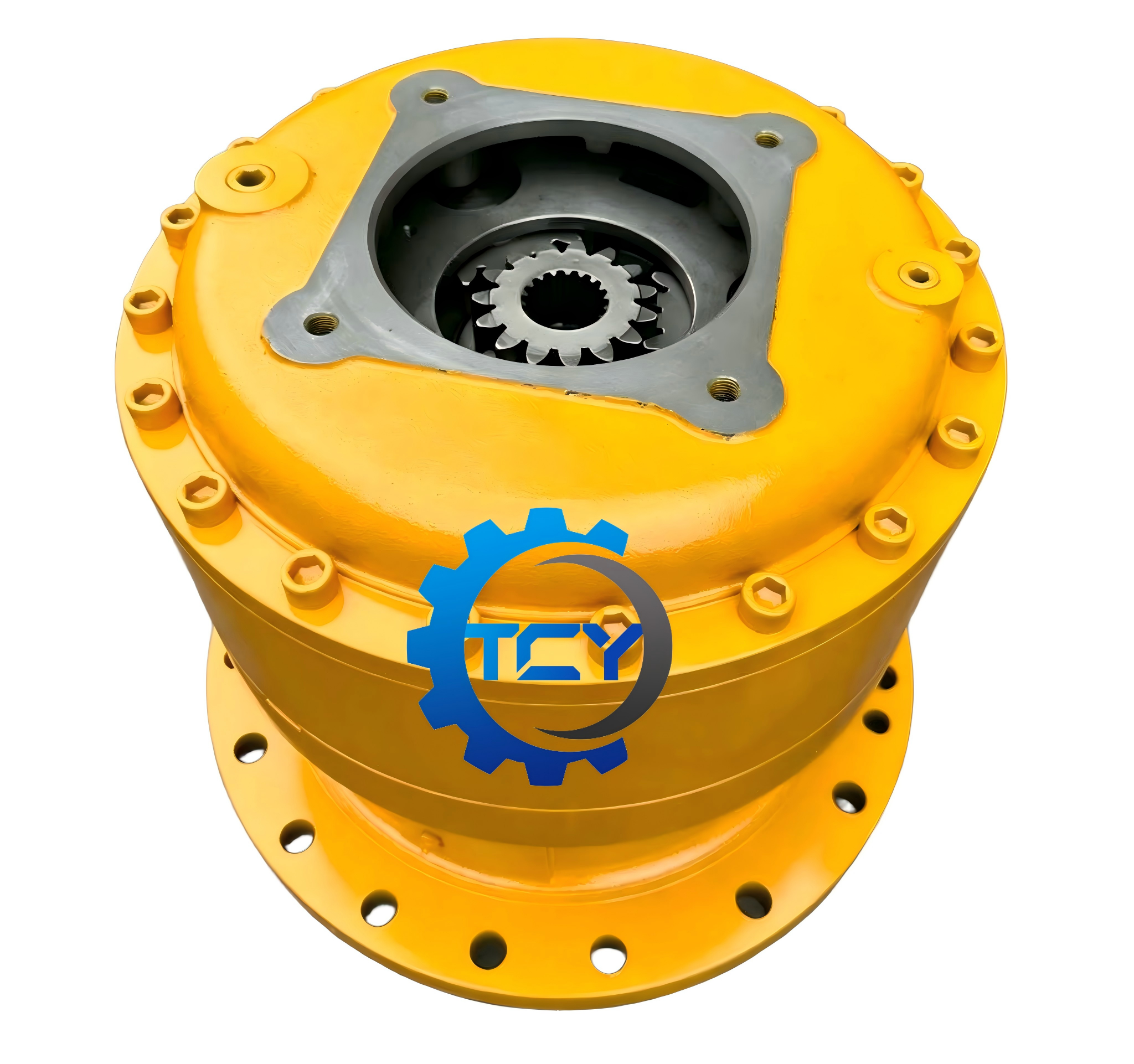

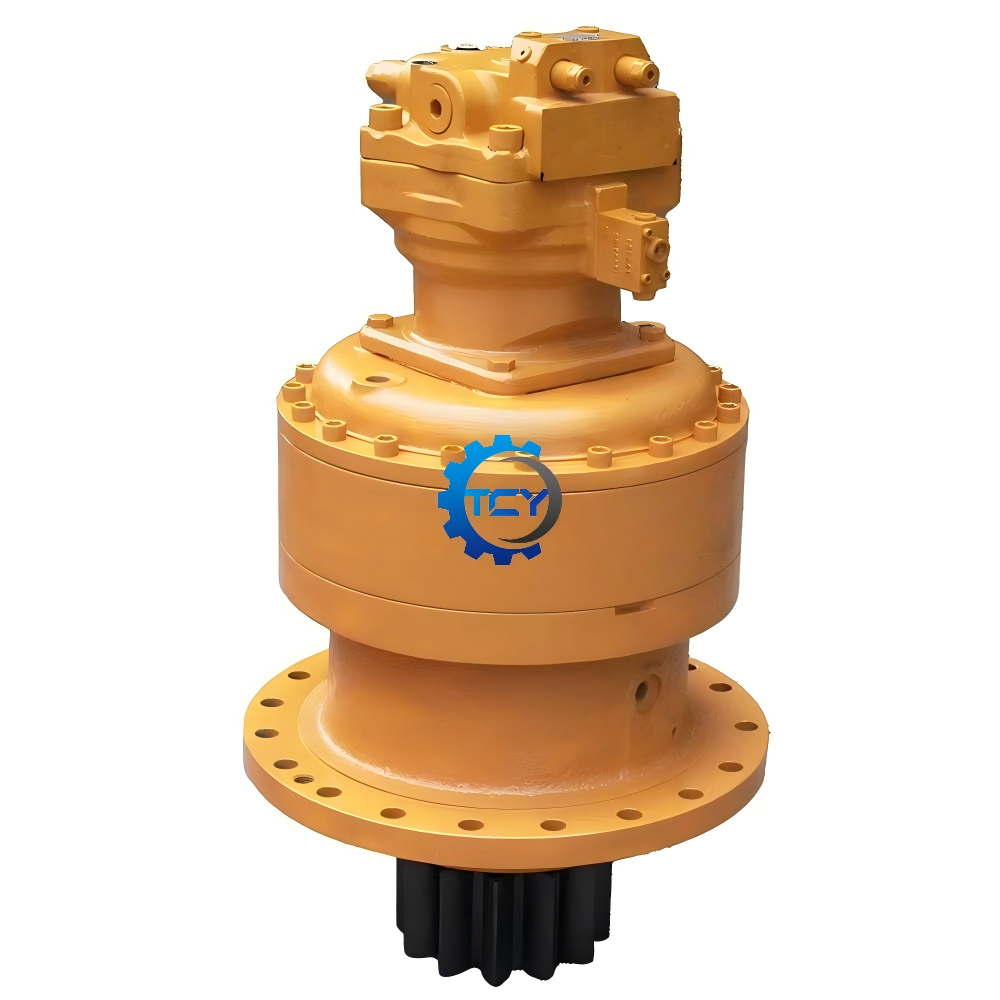

60191651 60201948 60201949 Swing device 60191651 Slewing Reducer Assembly RG27D25E Swing Reduction Gear M5X250CHB Motor for SY485 SY500 SY550
*Designed and manufactured based on genuine OEM parts with a 1:1 fit, making it the perfect aftermarket replacement
*Wide Application: Ideal for excavators, loaders, cranes, and rotary drilling rigs—performing reliably in construction, mining, quarrying, and infrastructure projects.
| NO. | NAME | Part NO. | QTY |
| 1 | cover | 60221607 | 1 |
| 2 | Rear cover plate | 60221608 | 1 |
| 3 | Driving Shaft | 60221609 | 1 |
| 4 | Ring gear | 60221610 | 1 |
| 5 | Planet Gear | 60221611 | 4 |
| 6 | Central gear | 60221612 | 1 |
| 7 | Planet Gear | 60221613 | 3 |
| 8 | Central gear | 60221614 | 1 |
| 9 | Carrier Support | 60221615 | 1 |
| 10 | Carrier Support | 60221616 | 4 |
| 11 | Pin | 60221617 | 3 |
| 12 | Pin | 60221618 | 6 |
| 13 | Sliding block | 60221619 | 4 |
| 14 | Gasket | 60221620 | 1 |
| 15 | Sliding boot plate | 60221621 | 1 |
| 16 | Dipstick,oil | 60084222 | 1 |
| 17 | Tube, oil gauge | 60081472 | 1 |
| 18 | Pipe, oil feed | 60008615 | 1 |
| 19 | Cover, breathing tube | B229900002437 | 1 |
| 20 | nameplate | 60221622 | 1 |
| 21 | Pin | 60038620 | 2 |
| 22 | Bearing | 60221623 | 1 |
| 23 | Bearing | 60221624 | 1 |
| 24 | Pointer gauge | 60221625 | 3 |
| 25 | Outer hex bolt | 60221626 | 4 |
| 26 | Inner hexagon bolt | 60221627 | 20 |
| 27 | Gearbox Oil Seal | 60210760 | 1 |
| 28 | O-ring | B230101002175 | 1 |
| 29 | Spring pin | 60221628 | 3 |
| 30 | Spring pin | 60221629 | 4 |
| 31 | Support Ring | 60221630 | 1 |
| 32 | Support Ring | 60221631 | 1 |
| 33 | Bearing Seal Element | 60221632 | 1 |
| 34 | Plug,bolt,slewing reducer | B229900005912 | 1 |
| 35 | Plug | 60008609 | 1 |
| 36 | Fitting, grease | 60008610 | 1 |
| 37 | Plug,bolt,slewing reducer | B229900005912 | 1 |
| 38 | Slewing reducer plugs | 60221633 | 1 |
| 39 | Bolt head | 60221634 | 2 |
| Swing Gearbox Model | Part Number (P/N) |
| PC60-7 Swing gearbox | 201-26-00130 |
| PC78-6 Swing gearbox | 21W-26-00100 |
| PC120-6 Swing gearbox | 203-26-00150 |
| PC128 Swing gearbox | 21Y-26-01000 |
| PC160-7 Swing gearbox | KBB0840-35001 |
| PC200-6 Swing gearbox | 20Y-26-00150 |
| PC200-7 Swing gearbox | 20Y-26-00240 |
| PC200-8 Swing gearbox | 20Y-26-00232 |
| PC220-7 Swing gearbox | 112-32-11211 |
| PC210-7 Swing gearbox | 20Y-26-00220 |
| PC220-7 Swing gearbox | 112-32-11211 |
| PC210-10MO Swing gearbox | 20Y-26-00280 |
| PC360-7 Swing gearbox | 207-26-00210 |
| PC300-8MO Swing gearbox | 207-26-00300 |
| PC450-7 Swing gearbox | 207-26-00210 |
| EX60-2 Swing gearbox | 9118328 |
| EX60-5 Swing gearbox | YR32W00002F1 |
| EX120-5 Swing gearbox | 9148921 |
| EX200-1 Swing gearbox | 9083734 |
| EX200-5 Swing gearbox | 9148922 |
| EX300-5 Swing gearbox | 4371768 |
| ZX70-5G Swing gearbox | YD60001603 |
| ZX130 Swing gearbox | 9298829 |
| E305 Swing gearbox | 170-8873 |
| E306E Swing gearbox | 486-1587 |
| E307C Swing gearbox | 148-4738 |
| E70B Swing gearbox | 099-6551 |
| E120B Swing gearbox | 099-0229 |
| E311C Swing gearbox | 169-5549 |
| E313D Swing gearbox | 467-4412 |
| E315D Swing gearbox | 199-4602 |
| E318D Swing gearbox | 467-4416 |
| E320GC Swing gearbox | 536-7286 |
| E320C Swing gearbox | 148-4644 |
| E320D2 Swing gearbox | 378-9517 |
| E324D Swing gearbox | 191-2693 |
| E330D2 Swing gearbox | 418-7154 |
| E330GC Swing gearbox | 557-5938 |
| E336D Swing gearbox | 333-2959 |
| E336D2 Swing gearbox | 378-9558 |
| E345 Swing gearbox | 296-6250 |
| E349D2 Swing gearbox | 418-7155 |
| E345GC Swing gearbox | 536-7294 |
| E349GC Swing gearbox | 538-5282 |
| E374D Swing gearbox | 378-9543 |
| ZX120 Swing gearbox | 9196343 |
| ZX200 Swing gearbox | 9260804 |
| ZX200-3 Swing gearbox | 9196963 |
| ZX240-3 Swing gearbox | 9243323 |
| ZX330-3 Swing gearbox | 9236591 |
| ZX470-3 Swing gearbox | 9180776 |
| ZX450-5G Swing gearbox | 9300512 |
| ZX870-3 Swing gearbox | 9250921 |
| EC55 Swing gearbox | VOE14529547 |
| EC140 Swing gearbox | VOE14540907 |
| EC200D Swing gearbox | VOE14724036 |
| EC210 Swing gearbox | SA7118-30100 |
| EC240 Swing gearbox | VOE14503783 |
| EC240 Swing gearbox | VOE14566202 |
| EC290 Swing gearbox | VOE14569767 |
| EC350 Swing gearbox | VOE14659487 |
| EC360 Swing gearbox | VOE14668227 |
| EC380 Swing gearbox | VOE14622901 |
| EC460 Swing gearbox | SA7118-30130 |
| R55-7 Swing gearbox | 31M6-50060 |
| DX80 Swing gearbox | K1042873 |
| DH150-7 Swing gearbox | 2404-1066A |
| DH225-7 Swing gearbox | K1038203 |
| DH220-5 Swing gearbox | 2404-1063B |
| DX225-9 Swing gearbox | 130426-00024 |
| DX260 Swing gearbox | K1004037A |
| DH258 Swing gearbox | 2101-1025 |
| DX300-9 Swing gearbox | 130426-00017 |
| DH370-7 Swing gearbox | 404-00094 |
| DX380 Swing gearbox | 130426-00018 |
| DX500-9 Swing gearbox | 130426-00024 |
| DX800 Swing gearbox | 130426-00042A |
| R110-9 Swing gearbox | 31Q4-11140 |
| R130 Swing gearbox | 31N4-10140 |
| R150-9VS Swing gearbox | 39Q4-12100 |
| R215-7 Swing gearbox | 31N6-10180 |
| R220LC-9 Swing gearbox | 39Q6-12100 |
| R250-7 Swing gearbox | 31EN-10070 |
| R290-7 Swing gearbox | 31E9-01051 |
| R300LC-9 Swing gearbox | 39Q8-12101 |
| R305-9 Swing gearbox | 31Q8-10141 |
| R335-9 Swing gearbox | XKAH-01597 |
| R375 Swing gearbox | 31NA-10150 |
| R500 Swing gearbox | 31QB-10140 |
| R520LC-9 Swing gearbox | 39QB-12100 |
| SK60-5 Swing gearbox | YR32W00002F1 |
| SK135-8 Swing gearbox | YX32W00002F1 |
| SK140-8 Swing gearbox | YY32W00004F1 |
| SK200-1 Swing gearbox | 24100J11091F2 |
| SK200-6 Swing gearbox | YM32W00001F1 |
| SK200-8 Swing gearbox | YN32W00022F2 |
| SK210-8HD Swing gearbox | YN32W00025F1 |
| SK230-6 Swing gearbox | Q32W00009F1 |
| SK250-8 Swing gearbox | LQ32W00011F1 |
| SK260-8HD Swing gearbox | LQ32W00016F1 |
| SK350-8 Swing gearbox | LC32W00011F1 |
| SK460-8 Swing gearbox | LS32W00012F1 |
| SH120J3 Swing gearbox | LN002340 |
| SH200 Swing gearbox | KRC0186 |
| SH240-3 Swing gearbox | KBC0127 |
| SH240-5 Swing gearbox | KBC10030 |
| SH350-5 Swing gearbox | KSC10480 |
| SH460 Swing gearbox | KTC10150 |
| LG225D Swing gearbox | 11C0587 |
| LG925D Swing gearbox | 11C0109 |
| SY335-9 Swing gearbox | 60042755 |
Exhibition
Packaging
FAQ
Q:What is your sample policy?
A:We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q:What are your main products?
A:We focus on spare parts for excavator hydraulic system, such as travel motors, swing motors, travel gearboxes, swing gearboxes, gear parts, hydraulic pumps.
If you need other excavator accessories, we can also supply according to your.
Q:How long is the warranty period of the product?
A:The warranty time is 6 months, depending on the project situation; we do not provide the warranty time for original and second-hand products.
Q:How do I order?
A:You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order.
Q:How do I pay?
A:You can pay through T/T, XT, wechat,alipay trade guarantee or negotiate payment.
